Specifications CPX1

OPTICAL
LCD Panel: 0.63"P-Si TFT x 3
Resolution XGA: 1024 dots x 768 lines
Number of Colour: 8bit / colour, 16.7Mcolours
Brightness: 2000lm Normal Mode
1600lm Whisper Mode
Contrast Ratio: 500:1
Lamp: UHB 160W
Lamp Life @ whisper: 3000hrs
Lens: F1.8~1.9 x1.2 Optical Zoom (f=16.4~19.7 mm), Manual Focus
Keystone: 6:1upward shift, fixed
Digital Keystone: Auto V keystone
Diagonal Display: Size 30~300 inches
(60" @ 1.5m)
Computer Compatibility: IBM Compatible VGA, SVGA XGA, SXGA / SXGA+,UXGA Compressed, MAC 16"
Video Compatibility: NTSC / PAL / SECAM / PAL-M,N / NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p (720p@60Hz), 1125i(1080i@50 / 60Hz)
Audio Speakers: 1.0 W x 1

CONNECTIONS
Audio Input: 1 x Stereo Mini jack
Video Input: 1 x Composite
1 x S-Video jack
1 x Component (shared with D-sub1)
Data Input: 2 x 15-pin Mini D-sub
Control and Mouse: USB type B x 1 for mouse control
NO RS-232C
USB type: A x1 for PC-less presentation •
Audio Output: 1 x Stereo Mini jack

Physical
Weight: 1.7kg (3.8lbs)
Size: (W x H x D) 274 x 59 x 205 mm
(excluding feet and extrusions)

Miscellaneous
Lamp Indicator Light, Power Indicator Light, Temp Indicator Light, Ceiling Mount Image, Rear Projection Image
Accessories Power Cord, RGB Cable (2m), Wireless Remote Control Unit, "AA" Batteries (x 2), Soft Case, Rivet, Strap, Lens Cap, Filter Cover (for bottom-up use), Operating Guide (14 Languages), Safety Instructions (15 Languages on CD-ROM), Users Manual (14 Languages: English, French, Spanish, German, Italian, Norwegian, Dutch, Portuguese, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish)

POWER
Voltage: 100-120V / 220-240V
auto switching
Noise: 35dB Normal Mode
29dB Whisper Mode
Agency Certifications: CE approval, EN61000-3-2, EN61000-3-3, EN55022, EN55024, EN60950, Low voltage directive, WEEE

Features
ASPECT selection
For Video: 4:3 / 16:9 / 14:9 / Small
For Data: Normal / 4:3 / 16:9 / Small
Vertical Digital Keystone Correction: ±30degrees (Note: Input signal is XGA @ 60Hz, Zoom position is Wide max.), Auto Vertical Digital Keystone Correction: ±30degrees, Mirror Reverse Image, Up-side Down Image, Freeze, Magnify, Blank, Digital Gamma Correction, Color temperature Adjustment, Picture mode (Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard), Progressive (Video / S-Video signal, Component video of 525i(480i), 625i(576i)), 2-3 Pull Down for NTSC, Video noise reduction, Overscan (Video, S-Video, Component signal), Resolution setting, Frame Lock, Audio ports assign, Source naming, Quick start (3 Seconds), Instant off, Auto signal search, MyScreen PIN Lock, Transition detector, PIN Security Lock, 17 Languages OSD (English, French, German, Spanish, Italian, Norwegian,Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkey), PC Less Presentation

Customisation MyScreen, My Memory, My Button

Interactive White Boards Wireless Tablets LCD Projectors

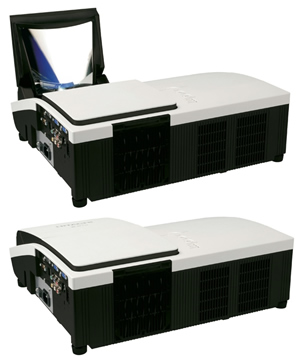

LCD Projector | ED-A100 | SHORT-THROW

Don’t let a projector come between you and your audience. Featuring unique Hitachi optical technology, the ED-A100 has an ultra short throw capability delivering a 60" projection screen at only 42cm*.This allows the projector to be sited very close to the screen, eliminating shadowing effects and allowing greater flexibility for the user. With advanced picture quality, added usability and security features this product will revolutionise the use of projectors in education and business.

*9.6cm from the front of the projector to the screen

World's first high performance free shaped lens
Ultra Short Throw - 60" (152cm) image at only 42cm from mirror to screen
Full Connectivity - RGB 2in/1out, Video, S-Video, Component, 3 x Audio in, 1 x out
Brightness:
Normal Mode - 1500 ANSI Lumens
Bright Mode - 2000 ANSI Lumens
Network capability – LAN through RJ-45
Enhanced Security – Security bar, PIN lock, MyScreen PIN Lock, Keypad lock, E-mail alert when connected to a LAN
