Specifications WT-1

Model No.
StarBoard WT-1
(NWT-101, NWT-101R), AH00222

Input Methods
Electromagnetic induction

Interface to Computer
Wireless 2.4G RF

Active area size (mm)
203,2 (W) x 152,4(H)

Dimensions (mm)
278 (W) x 265 (H) x 23 (D)

Weight
590g

Sampling Rate
120 points/s

Resolution
2000Lpi

Function button
16 buttons

Hot key
1 (for pairing)

Power supply
Li-ion rechargeble battery (Unremovable)

Battery usage time
16 hours (Continuous use)

Operating Specification
+10 - +35 Celsius

Safety Standard approvals
CE, FCC

Packing dimension (mm)
298 (W) x 298 (H) x 45 (D)

Electronic Pen Model No.
WT1-M0201

Battery
AAA battery x 1 (1.5V)

Battery life
Approximately 1680 hours

Proximity
10mm

Pen feature
On/Off switch, Low battery Indicator
LED
2.4G RF Adaptor (enclosed)

Model No.
NWT-101R

Interface to Computer
USB 1.1 (USB 2.0 compatible)

RF range
Up to 10m (limited condition)

Power
USB bus power (LED indicator for checking power status)

Dimensions (mm)
20 (W) x 9.4 (H) x 47.8 (D)

Weight
10g

AC Adaptor (enclosed)
Input
AC100~240V, 47Hz~63Hz, 0.15A

Output
5VDC, 0.5A

System Requirements
based on StarBoard Software 8.13
Computers
CPU: Pentium 4 1.8GHz; RAM:
512MB; HDD 200MB of free space;
Internet Explorer 6/7/8; Microsoft
Office 2002/2003/2007; Adobe
Acrobat Reader 5.05; Adobe
Reader 6/7/8/9; Microsoft Visio
2002/2003/2007; Microsoft Project
2002/2003; Microsoft DirectX 9.0c
or higher; Window Media Encoder
9.0;
Windows Operating System
Microsoft Windows 2000, Microsoft
Windows XP(32bits), Microsoft
Windows Vista(32bits), Microsoft
Windows 7(32bits) (latest service
pack recommended)
Other Operating System
Please contact local office about
MAC, Linux support
StarBoard Software
StarBoard Software 8.13 or higher
Tablet driver
Pen pad driver version 8.13 or higher.

Interactive White Boards Wireless Tablets LCD Projectors

StarBoard | WT-1 | Wireless Tablets

Interact Anywhere, Anytime

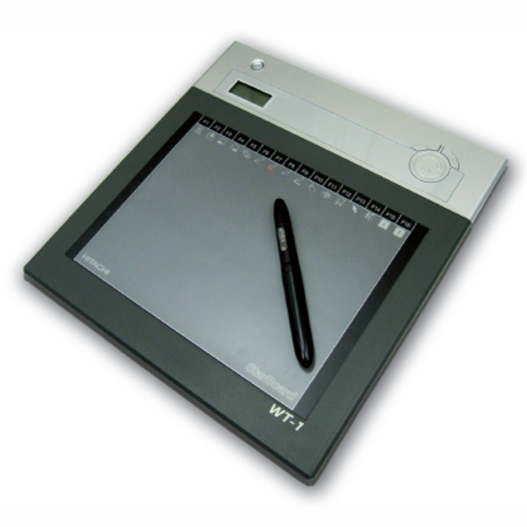

The StarBoard WT-1 is a lightweight graphics tablet that enables you to control your lessons or presentations from anywhere in the room. Featuring Wi-Fi technology, the new WT-1 is easy to install and simple to operate.

Wireless Control
With WT-1 you can comfortably control your lessons, presentations and software applications up to 10 meters away from your computer.

Simple to Operate

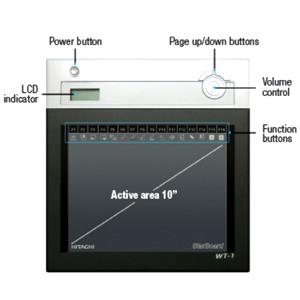

The WT-1 features 16 function buttons and an electronic wireless pen to ensure easy control of interactive whiteboard from anywhere in the room.

Involve the Audience
The device can be passed around the classroom or group members to contribute to lessons, training sessions or meetings without leaving their seat.

Parallel Usage
Up to 7 devices can be connected to one PC at the same time for interactive group work.
